Introduce

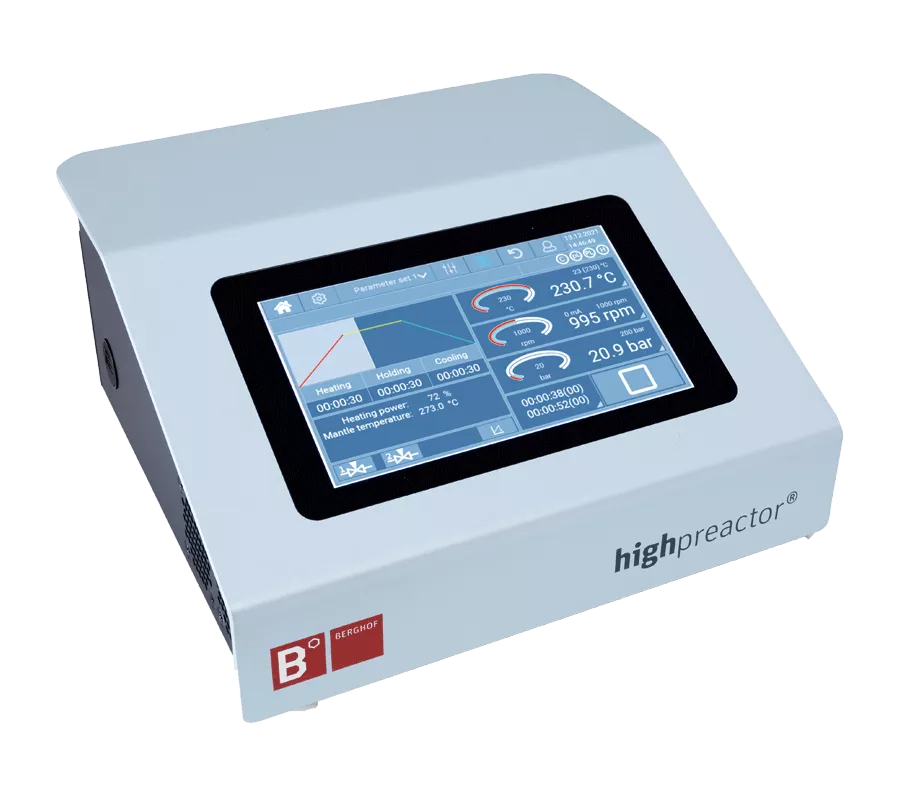

The 7" touch controller offers an intuitive and easy usage. Auto-tuning allows optimal process control through specifically optimized PID parameters. Small systems with up to two electrical valves can be switched manually or time- controlled.
Spec
- Voltage: 230 V, 50/60 Hz
- Heating power: 3000 W max.
- Temperature sensor: PT-100 (2-/4-conductor)
- Temperature range: 0-400 °C
- Display: 7" Touchscreen
- Weight; 2.6kgs
- Languages: English; Germany
- Connection options:
- PT-100: 3x
- Pressure sensor: 2x
- External valve: 2x
- Cooling valve: 1x
- Stirrer: 1x
- BHM heating mantle: 1x
- COM RS-422/RS232: 1x
Applications
- Various kinds of synthesis like hydrogenation of C-C triple bonds, synthesis of metal nanoparticles, solvothermal synthesis and drug synthesis. Synthesis like hydrogenation of C-C triple bonds or homogenous/heterogeneous catalysis
- Catalyst research like tests of catalysts consisiting of liquid or solid materials
- Automotive
- Material testing like aging tests of e.g. elastomers, ceramics or metal parts
- Food & Feed
- Pharma & Cosmetics
