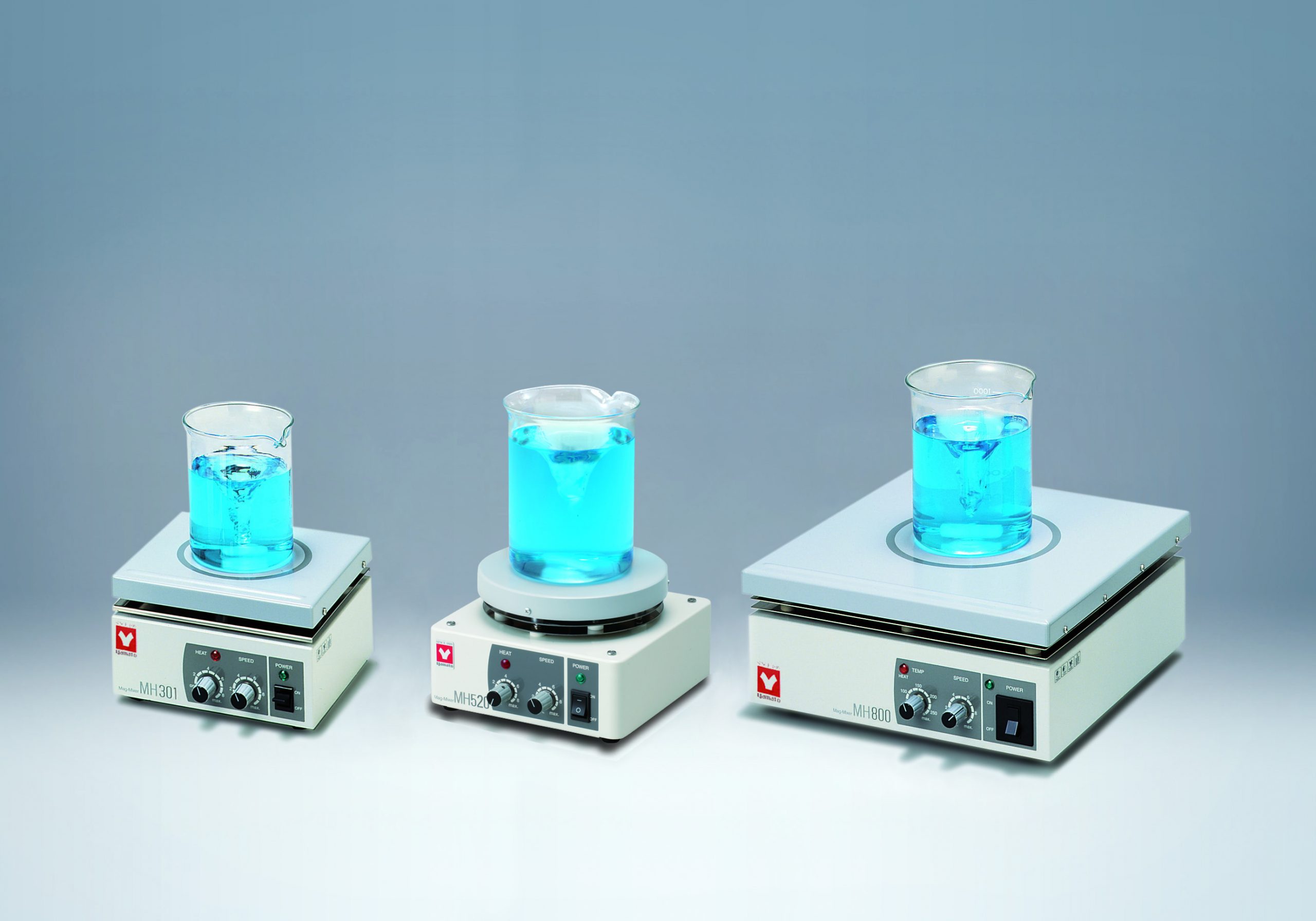

Yamato MH800 – 10 L Magnetic Stirrer with Hot Plate up to 250°C
The Yamato MH800 is a high-capacity magnetic stirrer with hot plate designed for stirring and heating samples up to 10 L. Its ceramic-coated aluminum plate provides good heat transfer and chemical resistance, while the strong stirring system is suitable for high-viscosity samples.
Key Features
- Stirring capacity: 200–10,000 mL.
- Stirring speed: 100–1,400 rpm.
- Maximum hot plate temperature: 250°C.
- Heater output: 1,000 W.
- Chemical-resistant ceramic-coated aluminum plate.
- Suitable for high-viscosity samples.
- Simple knob-type temperature control.
Typical Applications
- Laboratory solution stirring and heating.
- Chemical dissolution and sample preparation.
- Mixing of high-viscosity samples.
- Chemical, materials and quality-control laboratories.
Key Specifications
| Model | MH800 |
| Stirring capacity | 200–10,000 mL |
| Stirring speed | 100–1,400 rpm |
| Hot plate temperature | Max. 250°C |
| Heater | 1,000 W |
| Plate material | Ceramic-coated aluminum |
| Motor | AC motor, 3 W |
| Stirring stage size | 299 × 285 mm |
| External dimensions | 309 × 315 × 151 mm |
| Power supply | AC115V / AC220V |
| Weight | 6.7 kg |
Frequently Asked Questions
What is the maximum stirring capacity of the Yamato MH800?
The Yamato MH800 can stir samples from 200 mL up to 10 L, including high-viscosity samples.
What is the maximum hot plate temperature of the MH800?
The Yamato MH800 hot plate can reach a maximum temperature of 250°C.
