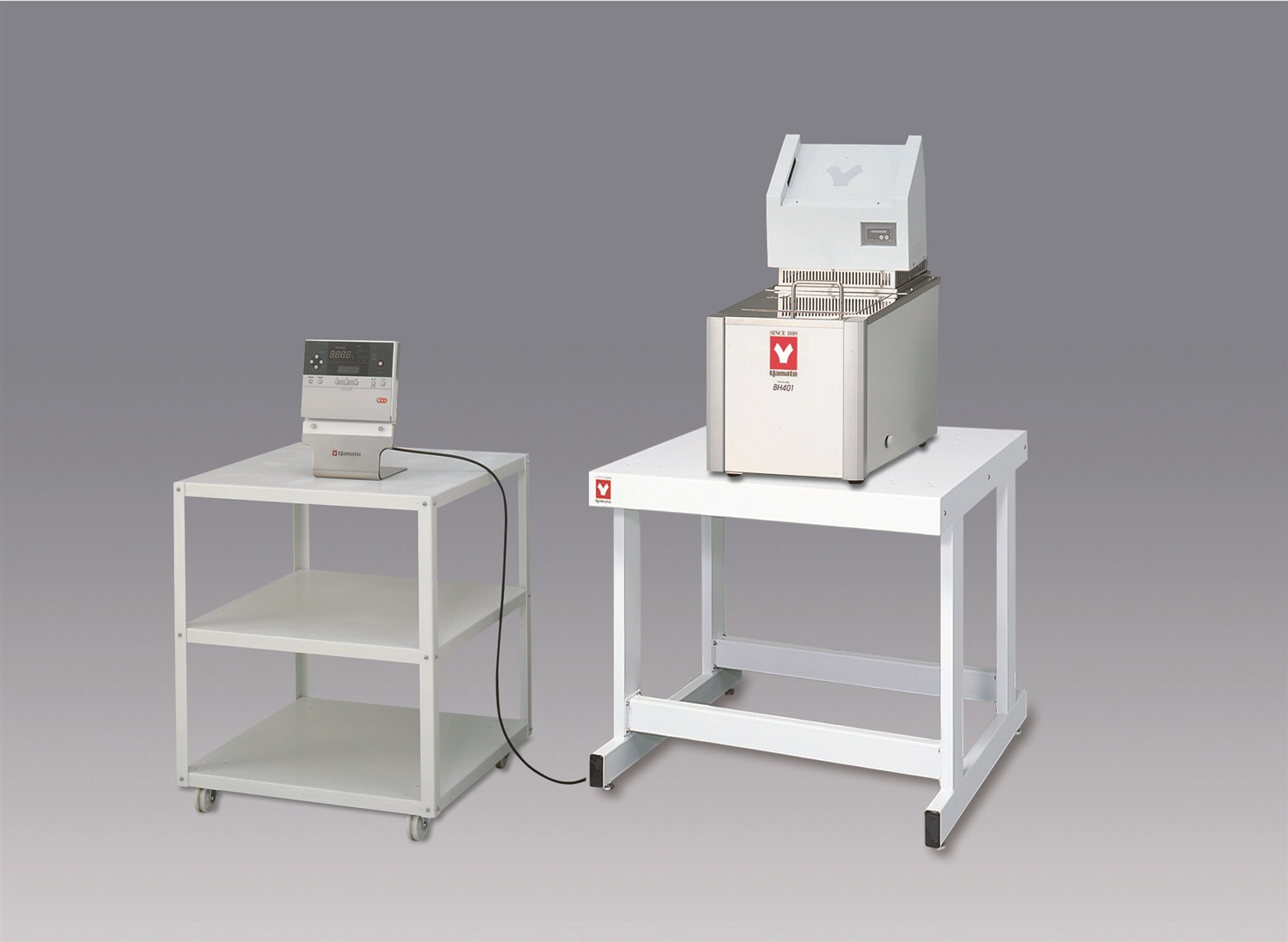

Yamato BH501 – High Precision Water/Oil Bath up to 200°C
The Yamato BH501 is a high-precision benchtop constant-temperature bath that can be used with water or silicone oil and operates up to 200°C. It is designed for calibration, precision temperature testing and external circulation applications in laboratory environments.
Key Features
- Operating temperature range: ambient +15°C to 200°C.
- Temperature adjustment accuracy: ±0.01°C with water.
- Can be used as a water or silicone oil bath.
- Programmable operation with up to 99 steps.
- Water-jet internal circulation and external closed circulation.
- Maximum pump flow: 14/15 L/min at 50/60 Hz.
- RS485 communication, temperature output and alarm output.
Typical Applications
- Temperature sensor calibration.
- High-precision sample temperature control.
- External circulation for laboratory equipment.
- Chemical, materials and quality-control laboratories.
Key Specifications
| Model | BH501 |
| Temperature range | Ambient +15°C to 200°C |
| Temperature accuracy | ±0.01°C with water; ±0.1°C with silicone oil |
| Temperature control | Microprocessor PID |
| Circulation system | Water jet / external closed circulation |
| Maximum pump flow | 14/15 L/min (50/60 Hz) |
| Heater | 1.2 kW |
| Internal capacity | 13 L, approx. 10 L liquid volume |
| Internal dimensions | 239 × 299 × 200 mm |
| External dimensions | 310 × 396 × 607 mm |
| Power supply | AC220V, 6A |
| Weight | 20 kg |
Frequently Asked Questions
Can the Yamato BH501 be used with oil?
Yes. The BH501 can operate with either water or silicone oil, allowing temperatures up to 200°C.
Does the Yamato BH501 support programmed operation?
Yes. It supports up to 99 programmable steps as well as fixed-temperature, auto-start and auto-stop operation.
