Introduction

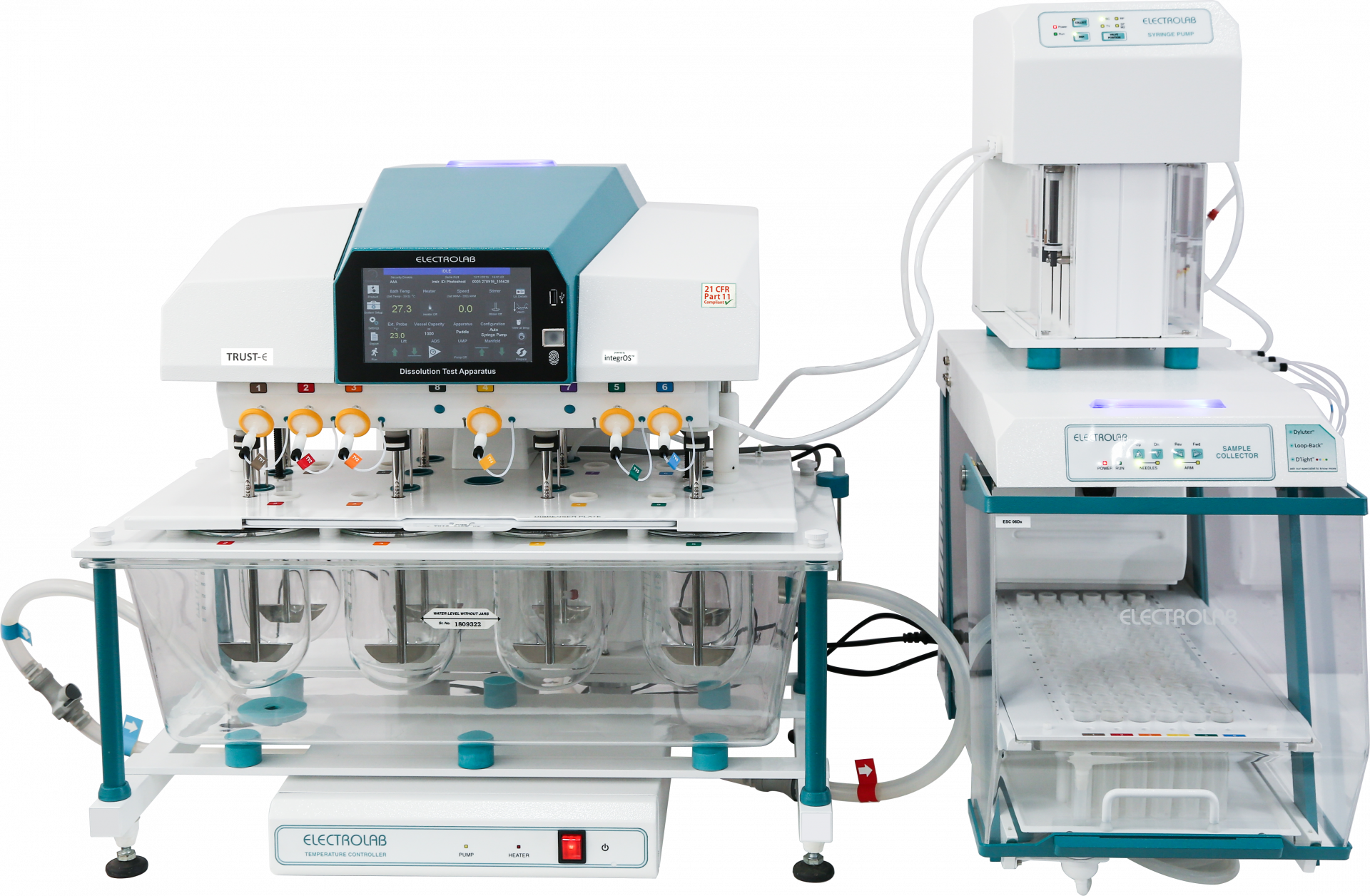

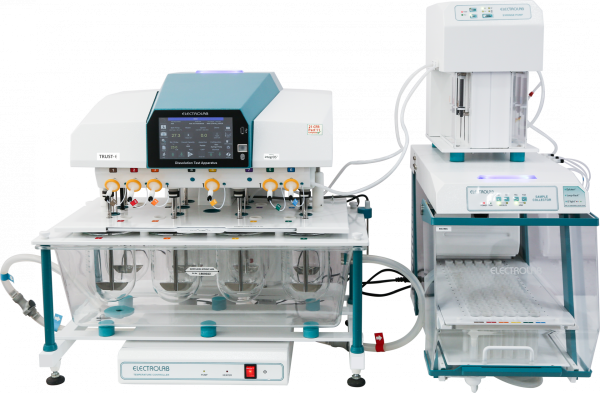

The TrustE-08 with Sample Collector (Dx) is a fully automated 8-station dissolution testing system. It is designed to streamline the testing process from start to finish. This system integrates a syringe pump and a sample collector (Dx) for precise offline sampling. It is ideal for quality control labs that require efficiency and regulatory compliance.
Product Overview
This system is engineered for the modern pharmaceutical lab. It runs on IntegrOS software, providing full 21 CFR Part 11 compliance with features like fingerprint authentication, audit trails, and e-signatures. The unique TimeAction™ function allows for programmed media changeovers, which is useful for extended-release products. The TrustE-08 with Sample Collector (Dx) automates the entire process, from tablet dropping to sample collection, which minimizes operator intervention and increases reproducibility.
Key Features
- 8-Station Capacity: Allows for testing of up to 8 samples simultaneously.
- Automated Sampling System: Integrated syringe pump and sample collector (Dx) for offline sampling.
- 21 CFR Part 11 Compliant: Features IntegrOS software with fingerprint login, audit trails, and e-signatures.
- 7-inch Touch Screen: An intuitive interface for easy programming and monitoring.
- USP Compliance: Supports methods for USP Apparatus 1, 2, 5, and 6.
- TimeAction™ Function: Enables programmed media changeovers for complex dissolution profiles.
Technical Specifications
Model | TrustE-08 with Dx |
No. Of Stations | 08 |
Speed Range | 20 to 300 RPM |
Temperature Range | 20°C to 40°C |
Display | 7″ TFT touch screen |
Vessel Capacity | 150ml, 250ml, 500ml, 1L, 2L |
Dimensions (W x L x H) | 517x 1187 x 690mm |
Applications
- Automated quality control testing of tablets and capsules.
- Dissolution profiling of immediate and extended-release drugs.
- Methods requiring USP 1 (Basket), 2 (Paddle), 5 (Paddle over Disk), and 6 (Rotating Cylinder).
- Laboratories requiring 21 CFR Part 11 data integrity and automation.
Pricing
Please contact us for consultation and detailed quotation.
Frequently Asked Questions (FAQ)
1. What is the TrustE-08 with Sample Collector (Dx) used for?
It is used to fully automate dissolution tests for up to 8 samples, including the collection of samples into tubes or vials for later analysis.
2. How does the automated sampling system work?
The syringe pump withdraws samples at programmed intervals and deposits them into the Dx sample collector, organizing them for easy offline analysis.
3. Is the TrustE-08 with Sample Collector (Dx) compliant with 21 CFR Part 11?
Yes, through its IntegrOS software, it offers full 21 CFR Part 11 compliance features, including fingerprint login, audit trails, and e-signatures.
4. What is the main advantage of this system?
The main advantage is full automation, which reduces human error, increases throughput, and ensures end-to-end data integrity.
5. What is the TimeAction™ function on the tester?
This function allows for programmed, automatic media changes, which is useful for mimicking the changing pH conditions of the GI tract for extended-release drugs.
Conclusion
The TrustE-08 with Sample Collector (Dx) is a comprehensive automated solution for dissolution testing. Its 8-station capacity and full 21 CFR Part 11 compliance features make it a reliable choice for the modern pharmaceutical laboratory. Contact us for more information.
