Introduction

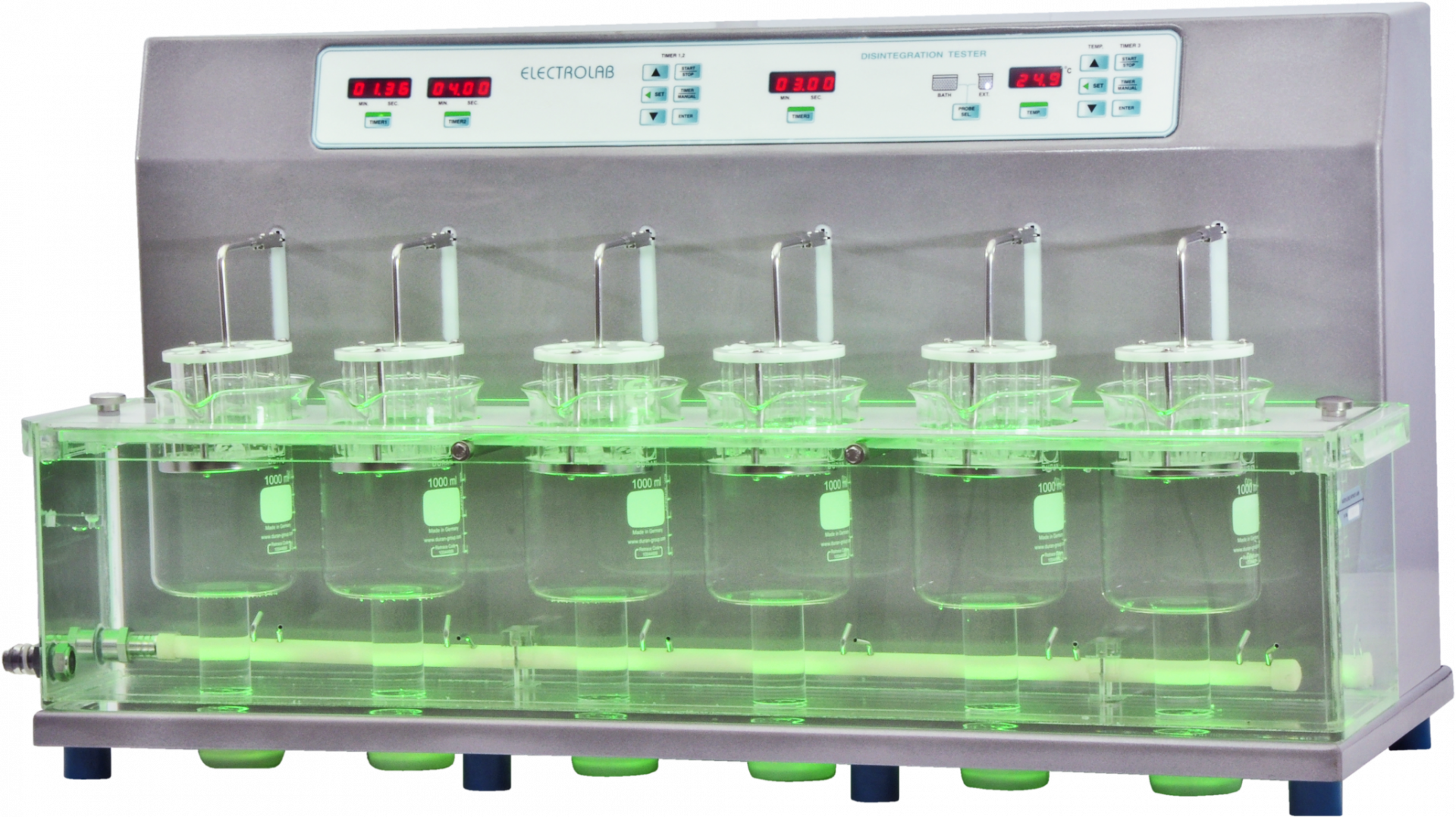

This tester measures the disintegration time of tablets ED-6AL. It supports six USP-style baskets for high-volume testing. The device operates with three independent motors. Each motor controls a pair of baskets. This allows for three separate tests to run at the same time. It is a reliable instrument for busy quality control laboratories.
Product Overview
The ED-6AL increases lab productivity with its six-station design. It has three independent timers and motors. This setup allows for flexible, parallel testing. The unit uses a water bath with a magnetically coupled pump. This ensures uniform temperature distribution. Features include a maintenance-free gearless drive and snap-click basket loading. Baskets automatically park in the top position after a test. Green illumination helps with the visibility of the disintegration process.
Key Features
- Supports six USP baskets for high-capacity testing.
- Features three independent timers and motors for parallel tests.
- Uses a gearless drive for smooth, maintenance-free operation.
- Includes snap-click loading for quick, swivel-free basket placement.
- Provides auto-parking of baskets at the end of a test.
- Has a programmable temperature controller for the water bath.
- Uses a magnetically coupled pump for water circulation.
- Features green illumination for better visibility of the process.
- Includes an external probe for beaker temperature validation.
Technical Specifications
| Specification | Value |
| Model | ED-6AL |
| Number of baskets | 6 |
| Number of motors | 3 |
| Number of strokes | 30 ±1 strokes/minute |
| Stroke length | 55 mm ±2 mm |
| Temperature Range | 20°C to 39.9°C |
| Timers | 3 timers, dual range |
| Heater | 750 Watts |
| Power Consumption | 1 KVA |
| Dimensions (L x W x H) | 924 x 360 x 518 mm |
| Weight | Approx. 32 kgs |
Applications
- High-volume quality control testing of tablets and capsules.
- Ensuring batch-to-batch consistency in pharmaceutical production.
- Formulation studies in research and development labs.
- Compliance testing according to pharmacopeia standards.
Pricing
Please contact us for consultation and detailed quotation.
FAQ
1. How many independent tests can be run on the ED-6AL?
The ED-6AL has three independent motors and timers. Each controls a pair of baskets. This allows you to run three separate tests simultaneously.
2. What is the benefit of the gearless drive?
The gearless drive is maintenance-free. It provides smooth and quiet operation. This improves the instrument’s reliability and lifespan.
3. How does the auto-parking feature work?
At the end of the set test time, the baskets automatically lift to their highest position. This removes them from the beakers for easy inspection.
4. How is a stable temperature maintained in the system?
The instrument uses a water bath with a 750-watt heater. A magnetically coupled pump circulates the water. This ensures a stable and uniform temperature.
5. What does the standard purchase include?
The standard instrument comes with the main unit, a water bath with heater, six glass beakers, six basket assemblies, and an external temperature probe.
Conclusion
The ED-6AL disintegration tester is built for high-throughput labs. Its six-basket capacity and three independent drives maximize efficiency. This instrument provides reliable results for demanding quality control environments. Contact us to learn more about this device.
