Introduction
This tester measures tablet disintegration time. It has four baskets for high throughput. The device complies with USP, IP, and Ph. Eur. standards. Two independent motors control pairs of baskets. This allows for two separate tests to run simultaneously. It is a reliable tool for pharmaceutical quality control.

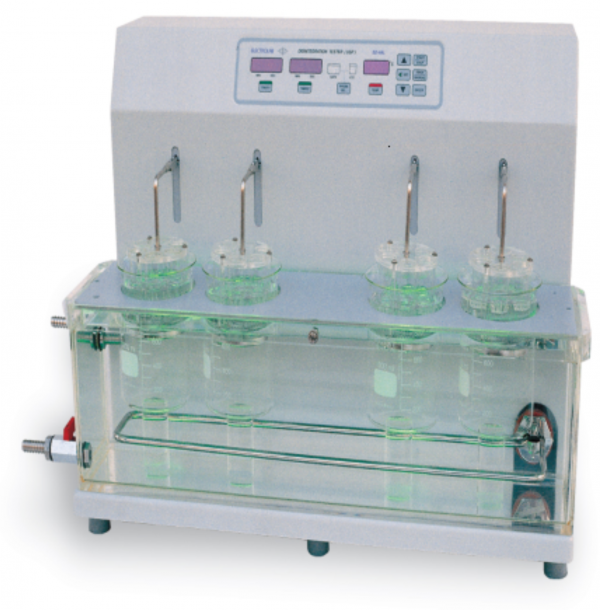

Product Overview
The ED-4AL supports four USP baskets. It increases testing capacity in the lab. Two independent motors and timers operate the unit. Each motor controls a pair of baskets. This allows two different tests to run at once. A magnetically coupled pump circulates water in the bath. This ensures uniform temperature. Baskets use snap-click loading for easy handling. They automatically park at the top after a test.
Key Features
- Complies with USP, IP, and Ph. Eur. specifications.
- Supports four USP baskets for increased throughput.
- Features two independent motors and timers.
- Uses snap-click loading for quick basket placement.
- Provides green illumination for better process visibility.
- Includes a programmable temperature controller for the water bath.
- Has a magnetically coupled pump for water circulation.
- Automatically parks baskets at the top after each test.
- Comes with an external probe for beaker temperature validation.
Technical Specifications
| Specification | Value |
| Model | ED-4AL |
| Number of baskets | 4 |
| Number of motors | 2 |
| Number of strokes | 30 ±0.5 strokes/minute |
| Stroke length | 55 mm ±2 mm |
| Temperature Range | 20°C to 39.9°C |
| Temperature Control Accuracy | ±0.3°C |
| Timer | 2 timers, dual range |
| Power Consumption | 1 KVA |
| Dimensions (L x W x H) | 350 x 390 x 510 mm |
| Weight | Net: 23 kgs |
Applications
- Quality control testing of tablets and capsules.
- Checking batch-to-batch consistency in manufacturing.
- Formulation development in research and development labs.
- Ensuring compliance with pharmacopeia standards.
Pricing
Please contact us for consultation and detailed quotation.
FAQ
1. How many tests can run independently on the ED-4AL?
The ED-4AL has two independent motors and timers. Each controls a pair of baskets. Therefore, you can run two separate tests at the same time.
2. What is the auto-parking feature?
The auto-parking feature automatically lifts the baskets to their highest position. This happens at the end of a programmed test time. It removes them from the beakers.
3. Is this tester compliant with international standards?
Yes. It complies with USP, IP, and European Pharmacopoeia (Ph. Eur.) specifications for disintegration testing.
4. How does the ED-4AL maintain a stable temperature?
It uses a water bath with a 750-watt heater. A magnetically coupled pump circulates the water. This ensures a uniform and stable temperature.
5. What standard accessories are included?
The standard package includes the water bath, four glass beakers, four six-tube basket assemblies, and one external temperature probe.
Conclusion
The ED-4AL tester increases lab productivity. It has four baskets and two independent drives. This device provides reliable, compliant results for tablet disintegration. Contact us to learn more about this high-throughput instrument.
