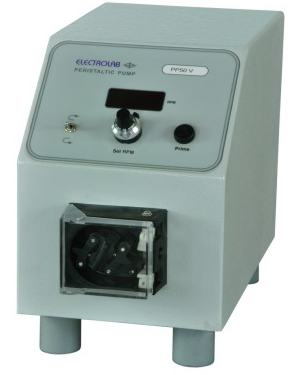

Peristaltic pump EPP-50V: The precise and flexible dosing solution

The Electrolab Peristaltic Pump EPP-50V is a versatile and reliable device, designed to provide precise dosing capabilities across a wide range of laboratory and industrial applications. With its variable speed control and durable design, it is the ideal tool for gentle, contamination-free fluid transfer.

Key features of the EPP-50V peristaltic pump

This product is the perfect combination of performance, precision, and operational simplicity.

Precise control with a stepper motor

Equipped with a powerful stepper motor, the EPP-50V allows for variable speed control from 1 to 200 rpm. This provides extremely accurate and highly repeatable flow control, within a range of 0.2 ml/min to 280 ml/min.

Contamination-free pumping, ideal for sensitive liquids

The peristaltic principle ensures that the fluid only contacts the inner wall of the tubing, completely eliminating the risk of contamination from mechanical parts. This makes the pump the perfect choice for handling shear-sensitive, viscous, or corrosive liquids.

Durable design and reliable operation

With a pump head made of engineering plastic (Supec) and a dual-roller mechanism, the EPP-50V pump is built for durability. Its ability to self-prime, run dry safely, and operate continuously 24/7 helps minimize downtime and maintenance costs.

Detailed technical specifications

• Model: EPP-50V

• Pump Head: Made of engineering plastic (Supec)

• Head Type: Spring loaded track – dual roller

• Motor: Stepper motor

• Torque of the Motor: 10 Kg/cm

• RPM: 1 to 200

• Tube Size: Min. 1mm to Max. 4mm ID (1.5mm wall thickness)

• Flow Rates: 0.2 ml/min to 280 ml/min

• Direction: Bi-directional (Clockwise & anti-clockwise)

• Operation: 100% duty cycle

Frequently asked questions (FAQ)

1. What are the main applications of the EPP-50V pump?
The EPP-50V is ideal for dosing, filling, and fluid transfer applications in laboratories, pharmaceuticals, food, chemical, and many other industries that do not require a flameproof enclosure.

2. How is the pump’s flow rate adjusted?
The flow rate is precisely adjusted by changing the motor’s rotational speed (from 1 to 200 rpm) and selecting the appropriate tube size (1mm to 4mm inner diameter).

3. How does this pump differ from the EPP-50VFLP model?
The EPP-50V is the standard model. The EPP-50VFLP model is a premium version featuring a flameproof housing and stainless steel cladding, specifically designed for hazardous and explosive work environments.

4. Can this pump handle viscous liquids?
Yes, the positive displacement mechanism of a peristaltic pump is very effective at handling highly viscous liquids.

5. Does the pump require complex maintenance?
No, the pump is virtually maintenance-free. The main task is to periodically inspect and replace the peristaltic tube when it wears out, which is a very simple and quick procedure.
