Introduction

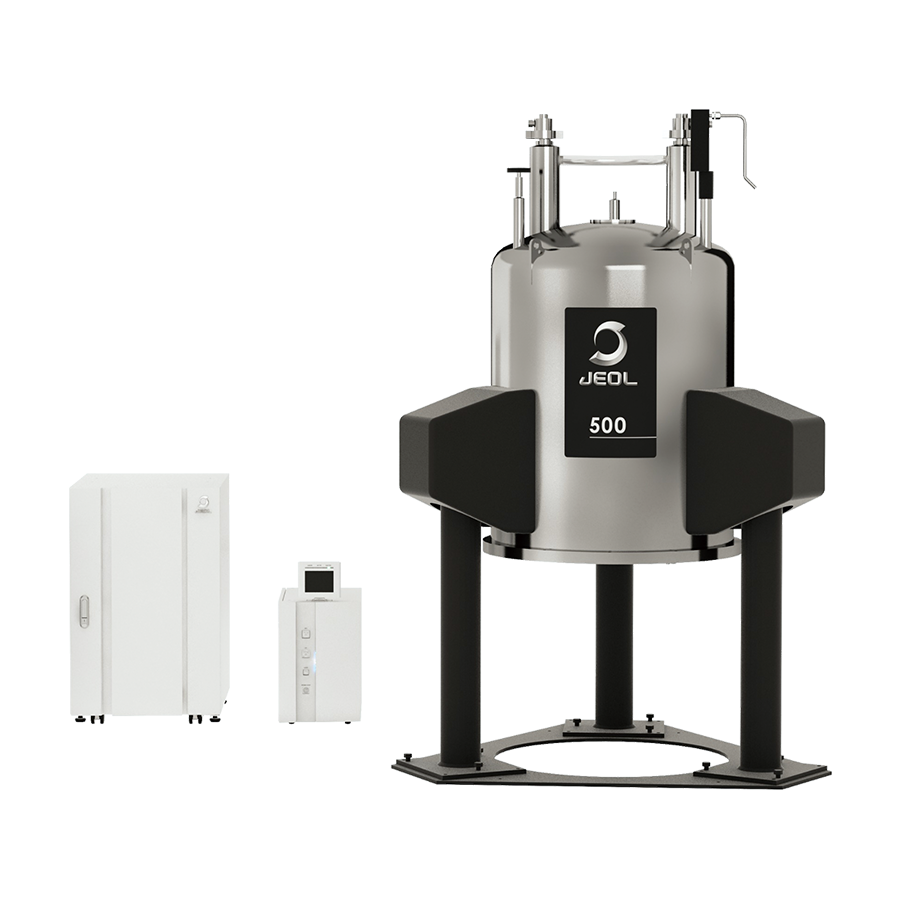

The NMR spectrometer ECZ Luminous™ JNM-ECZL series is a state-of-the-art FT NMR spectrometer. It is equipped with the latest digital and high-frequency technologies. This system delivers high performance in a compact design, supporting both solution and solid-state NMR measurements.
Product Overview
This series utilizes the highly integrated Smart Transceiver System (STS), which reduces size and enhances reliability. The ECZ Luminous™ is capable of high-field and solid-state NMR measurements while maintaining the footprint of a conventional low-field solution NMR system. The new Multi Frequency Drive System (MFDS) enables multi-resonance measurements on a standard configuration, expanding solutions for more users. The lineup includes three models: G series (flagship), R series (compact), and S series (entry-level).
Key Features
- STS Technology: Highly integrated digital control circuits, expandable up to 8 nuclei and 32 frequency sources.
- Precise Digital Control: Minimum control time resolution of 5 ns for fast frequency, phase, and amplitude modulation.
- Wide Dynamic Range: 16-bit 100Msps high-speed A/D conversion and digital DQD for clear small signal detection.
- MFDS System: Enables multi-resonance measurements (e.g., HCN, HCX) on a standard 2-channel spectrometer.
- Digital Lock Circuit: High-speed and accurate 2H lock control ensures stability for long-term measurements.
- Easy Shimming: Supports 3D gradient shimming for rapid and automatic resolution optimization.
Technical Specifications
| Specification | JNM-ECZL G series | JNM-ECZL R series | JNM-ECZL S series |
| Frequency | 400 MHz – 1.3 GHz | 400 MHz – 600 MHz | 400 MHz |
| Sample Type | Solution / Solid | Solution / Solid | Solution |
| Channels | 2 (standard) | 2 | 2 |
| Console Size (W x D x H) | 600×855×1,279 mm | 536×730×855 mm | 536×730×855 mm |
Applications
- Molecular structure analysis in chemistry and pharmaceuticals.
- New materials and polymer research (Solid-state NMR).
- Protein analysis and structural biology.
- Quality control and quantitative analysis in industry.
- Reaction kinetics and chemical mechanism studies.
Pricing
Please contact us for consultation and detailed quotation.
FAQ
1. What models are available in the NMR spectrometer ECZ Luminous™ JNM-ECZL series?
The series includes 3 models: G series (flagship, high expandability), R series (compact, high performance), and S series (entry-level for 400 MHz solution NMR).
2. What is STS technology?
STS (Smart Transceiver System) is a technology that highly integrates digital RF transceiver circuits, reducing instrument size and enhancing control precision.
3. Does the system support multi-resonance measurements?
Yes, thanks to the MFDS, the ECZ Luminous™ can perform multi-resonance measurements (like HCN) on a standard 2-channel configuration without costly hardware expansion.
4. What is the benefit of gradient shimming?
Gradient shimming uses magnetic field gradients to measure and adjust field homogeneity quickly and automatically, making it easy to achieve optimal spectral resolution.
5. Can the instrument measure solid samples?
Yes, both the G series and R series models support solid-state NMR measurements, expanding application capabilities for materials research.
Conclusion
The NMR spectrometer ECZ Luminous™ JNM-ECZL series represents a significant leap in NMR technology. With its high performance, flexibility, and compact design, it is the ideal solution for modern research laboratories.
