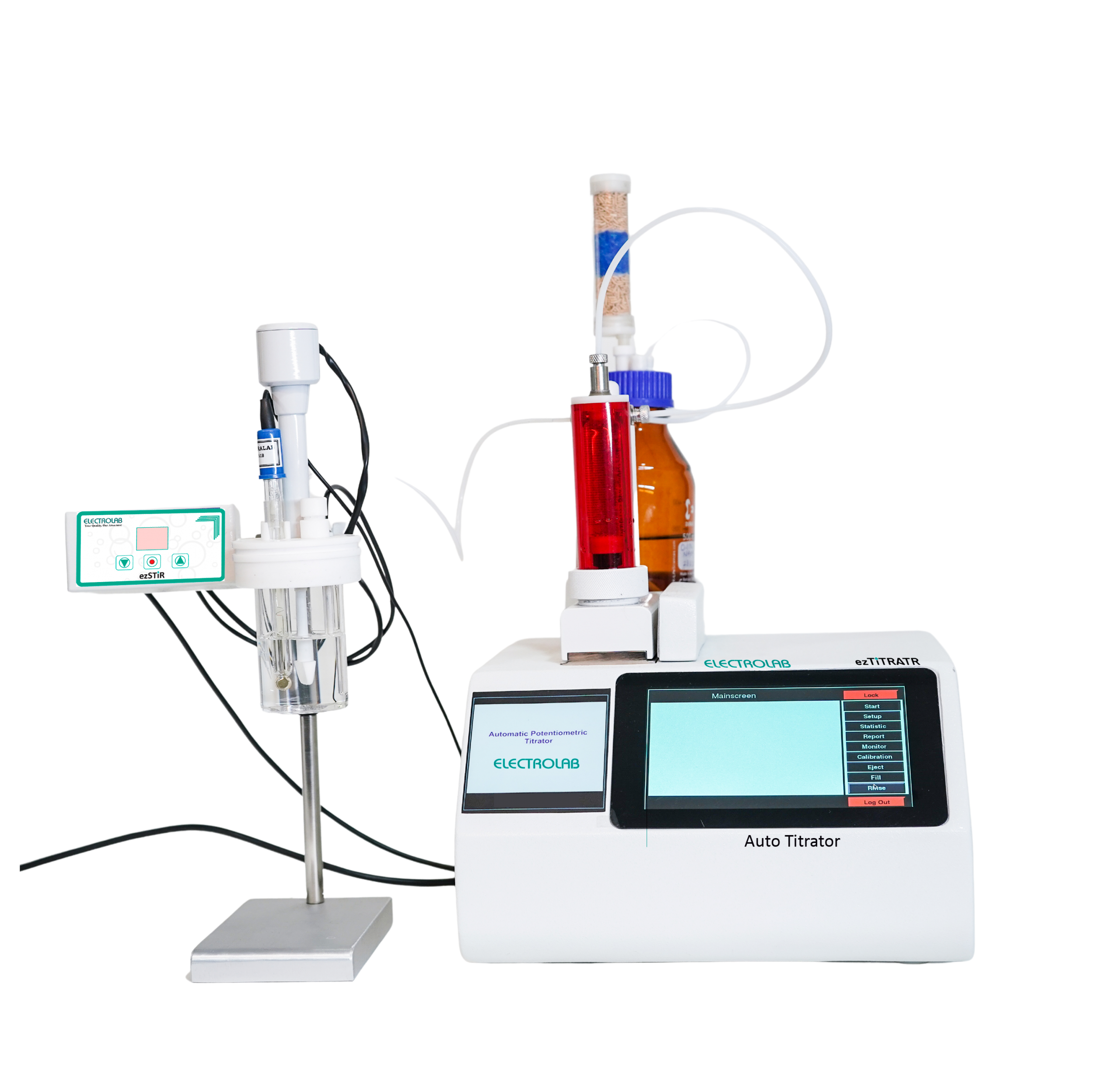

ezTiTRATR titrator: Accurate, versatile, and 21 CFR Part 11 compliant

Titration is one of the most fundamental and common quantitative analysis techniques in chemical and pharmaceutical laboratories. The ezTiTRATR titrator by Electrolab is a powerful automation system, designed to perform a wide variety of titrations with superior accuracy, an intelligent interface, and, most importantly, full compliance with 21 CFR Part 11 regulations.

Superior features of the ezTiTRATR titrator

This product combines precision hardware technology with intelligent data management software, meeting all the requirements of a modern laboratory.

Full compliance for the pharmaceutical industry (21 CFR Part 11)

With the included ezIntegrity software, the ezTiTRATR fully meets the stringent requirements of the US FDA’s 21 CFR Part 11 regulation. This ensures the integrity, security, and traceability of data, a mandatory factor for regulated labs.

Intuitive interface and smart operation

The device is equipped with a 7-inch capacitive touch screen with an intuitive graphical user interface (GUI), making it easy for users to set up methods, monitor the titration process, and view results. The magnetic stirrer’s speed is controlled directly on the touch screen, providing maximum convenience.

Intelligent burette system for superior accuracy

The burette dosing assembly is designed for efficiency and precision, with a resolution of just 1 μL, ensuring tightly controlled addition of the titrant. The automatic burette recognition feature helps eliminate errors and speeds up the process of changing analytical methods.

Flexibility for all types of titration

The ezTiTRATR is a versatile system, ideal for performing various types of titrations, such as aqueous and non-aqueous acid-base titrations, complexometric titrations, redox titrations, and argentometric titrations.

Detailed technical specifications

• Model: ezTiTRATR

• mV range: ±2500 mV

• mV Accuracy: ±0.1 mV

• Burette capacity: 20 mL

• Burette resolution: 1 μL

• Compatible Sensors: Potentiometric (pH, Redox, ISE), Temperature Sensor (PT-100)

• Endpoint detection: Potentiometric, Voltametric

• Display: 7-inch capacitive touchscreen

• Storage: 1000 Reports & Methods

• Communication Interface: ezIntegrity (21 CFR part 11), Ethernet/Wifi (PC), Ethernet/USB (Printer), USB (External drive)

Frequently asked questions (FAQ)

1. What is the benefit of 21 CFR Part 11 compliance on the ezTiTRATR?
It ensures that all generated electronic data is secure, unalterable, and has a complete audit trail. This is critical for pharmaceutical companies that need to submit data to regulatory agencies like the FDA.

2. What kinds of titrations can the machine perform?
The machine can perform most common potentiometric titrations, including acid-base (aqueous/non-aqueous), complexometric, redox, and argentometric (silver) titrations.

3. Can I use different types of electrodes?
Yes, the instrument is compatible with various potentiometric electrodes, such as pH electrodes (for aqueous and non-aqueous media), Redox electrodes, and Ion-Selective Electrodes (ISEs), depending on the optional accessories you purchase.

4. How can I get my data out of the instrument?
You can export reports to a USB drive, print directly via a USB/Ethernet-connected printer, or connect to a PC via Ethernet/Wifi to manage data with the ezIntegrity software.

5. How does the “burette recognition facility” work?
This feature allows the instrument to automatically recognize the volume and information of the installed burette. This helps minimize user setup errors and ensures measurement accuracy when switching between different titrants.
