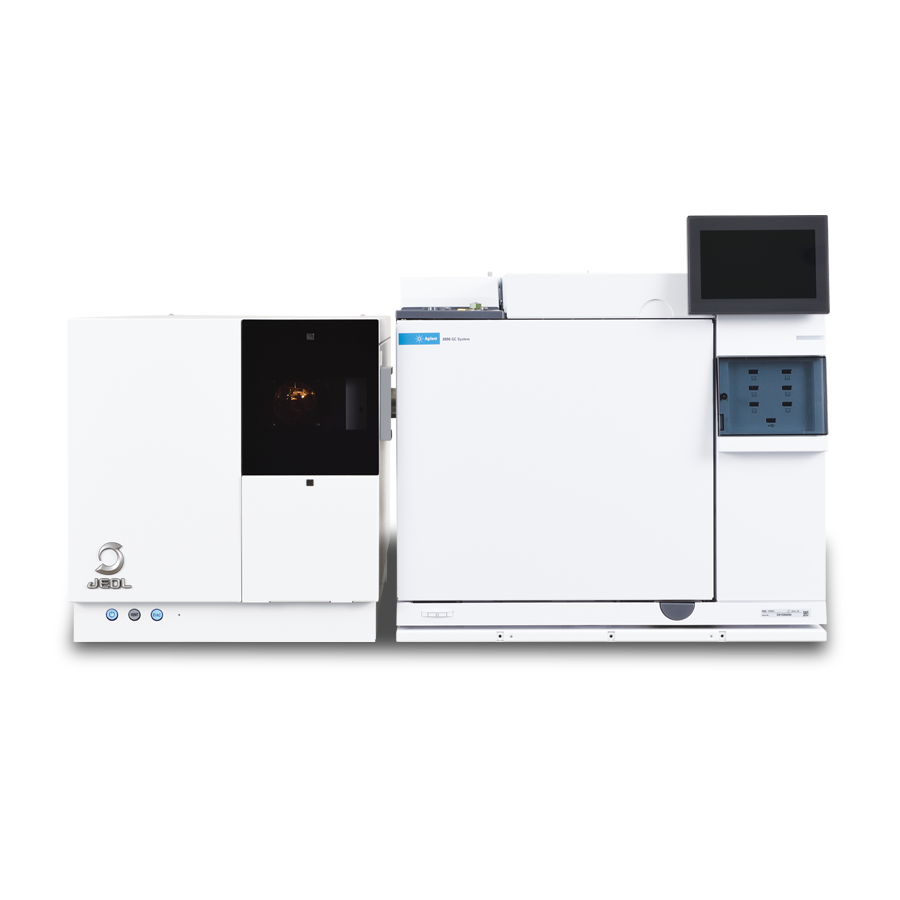

JMS-TQ4000GC – High Speed Triple Quadrupole GC-MS System

Introduction

JMS-TQ4000GC measures chemical compounds with high speed and sensitivity using triple quadrupole mass spectrometry technologies. This system is engineered to provide accurate quantitative values for various analytical applications. It utilizes proprietary technology to enhance throughput in routine analysis.

Product Overview

The instrument features a short collision cell capable of ion accumulation and pulsed ion ejection. This design allows the JMS-TQ4000GC to achieve industry-leading SRM switching speeds of 1,000 transitions per second. The system is fully compatible with Fast GC techniques, significantly reducing total measurement time without sensitivity loss. It also includes user-friendly software, “Escrime™,” designed for multi-target compound analysis and simplified data checking through an automatic slideshow function.

Key Features

• Short Collision Cell: Enables fast ion ejection and eliminates ion crosstalk among SRM channels.
• Ion Accumulation: Reduces signal noise by synchronizing pulsed ion ejection with signal acquisition.
• Fast GC Compatibility: Supports short, narrow-bore capillary columns for rapid analysis.
• High-Speed SRM: Achieves up to 1,000 transitions per second.
• Escrime™ Software: Features a simple GUI and Compound Slideshow function for easy data review.
• Easy Maintenance: Ion source removal requires no tools for quick cleaning and resumption.

Technical Specifications

Applications

• Pesticide residue analysis in food and agricultural products.
• Dioxin analysis in fly ash samples.
• Microplastics analysis using Pyrolysis-GC/MS/MS.
• Residual solvent analysis in cosmetic ingredients.
• Identification of additives in polymer films.

Pricing

Please contact us for consultation and detailed quotation.

FAQ

1. What is the primary function of the JMS-TQ4000GC?

It is used for high-sensitivity quantitative and qualitative analysis of trace compounds in complex matrices.

2. How does the short collision cell benefit analysis?

The short cell allows for rapid ejection of accumulated ions, enabling high-speed SRM switching without crosstalk.

3. Is the JMS-TQ4000GC compatible with Fast GC?

Yes, the system’s high-speed transition capability makes it ideal for Fast GC measurements, reducing analysis time.

4. How is the maintenance for the ion source handled?

The ion source can be removed from the main body without tools, and the high vacuum capability allows for a quick resume of analysis.

5. What is the Compound Slideshow function?

This software feature automatically displays calibration curves, chromatograms, and quantitative results for all target compounds on the screen.

Conclusion

JMS-TQ4000GC provides a robust platform for high-speed and sensitive mass spectrometry analysis. Its design focuses on efficiency and ease of use for laboratory professionals. Contact us for more details.
