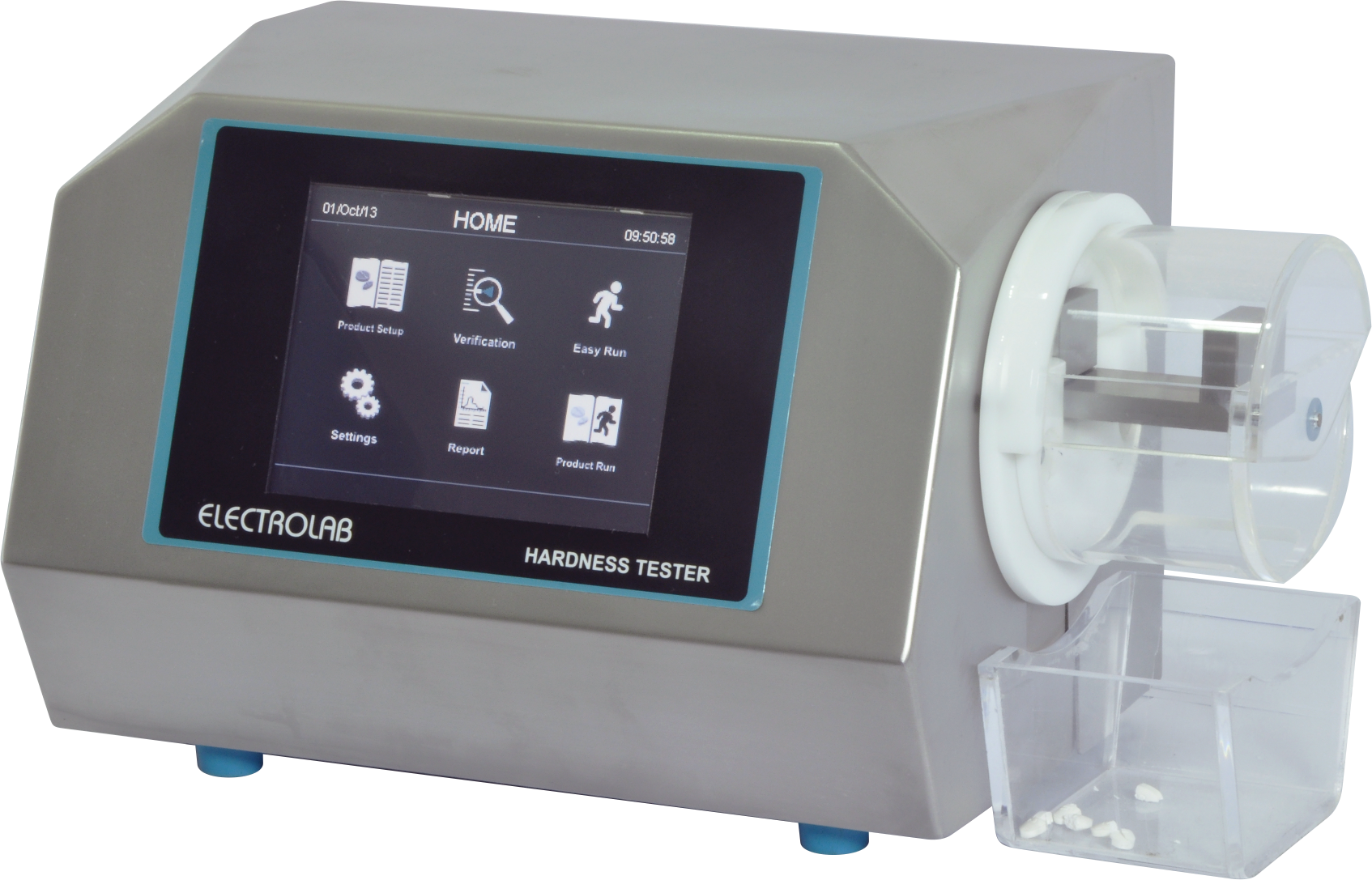

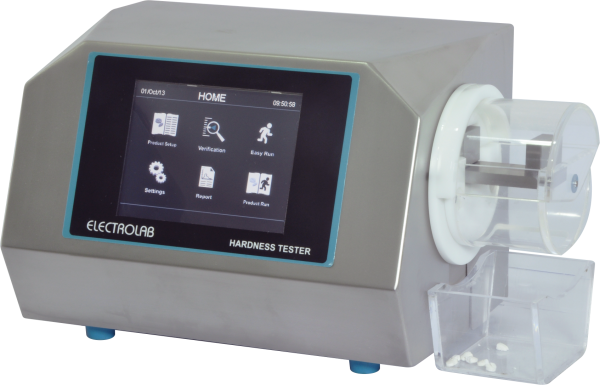

EBT-2PL tablet hardness tester: Accurate, efficient, and reliable

The EBT-2PL tablet hardness tester is an advanced instrument designed to meet the stringent quality control requirements of the pharmaceutical industry. With the ability to simultaneously measure two critical parameters—tablet hardness and thickness—the EBT-2PL provides a comprehensive solution to ensure the consistency and quality of every product batch.

Key features of the EBT-2PL hardness tester

This device is equipped with numerous superior features to optimize workflows and ensure high-precision measurement results.

• Dual measurement: Integrates the ability to measure both hardness and thickness in a single device.

• Touch screen display: Features an intuitive 5.7-inch touch screen, making it easy for users to set up and operate.

• Electronic load-cell: Utilizes an electronic load-cell for high-accuracy results, better than +/- 1N.

• Constant speed measuring principle: Ensures consistent and repeatable results by maintaining a constant measuring speed, programmable from 1 mm/sec to 3 mm/sec.

• Efficient data management: Allows for the storage of up to 99 monographs and 100 different product setups, simplifying data retrieval and management.

• Flexible operating modes: Offers automatic or manual modes with a programmable delay time.

• Printing and reporting: Easily print results, validation, and calibration reports via LAN and serial port connectivity.

• Plausibility checking: Includes a plausibility checking function to ensure data reliability.

Detailed specifications

Accessories and ordering information

Standard Accessories:

• Brush (1)

• EBT waste tray (1)

• EBT acrylic hood (1)

Optional Accessories:

• Brass weight 5 Kgs (Calibrated)

• 10 mm gauge block

• EBT/EHT magnetic tablet organizer tray

To place an order, please get in touch and provide the product code corresponding to your required voltage (230V or 110V).

Frequently asked questions (FAQ)

H3: What parameters can the EBT-2PL hardness tester measure?

The EBT-2PL is designed to measure two critical tablet parameters: hardness and thickness.

H3: What is the maximum force of the tester?

The device is capable of measuring a maximum force of up to 800N, making it suitable for most types of compressed tablets on the market.

H3: What is the measuring principle of the EBT-2PL?

The machine operates on the constant speed measuring principle. This speed is programmable from 1 mm/sec to 3 mm/sec, which helps ensure the consistency and repeatability of the results.

H3: Can the device connect to a printer?

Yes, the EBT-2PL supports printer connectivity via both a LAN port and a serial port, allowing for the convenient printing of results, calibration, and verification reports.

H3: What is the body of the EBT-2PL made of?

According to the ordering information, the body of the machine is made of Stainless Steel (S.S.), ensuring durability and ease of cleaning, which is ideal for laboratory environments.
