Introduction

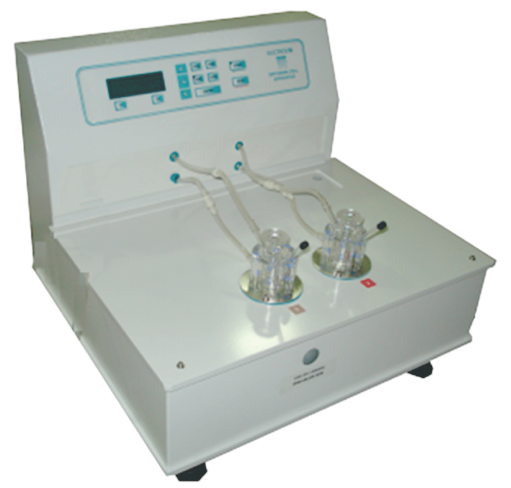

The Diffusion Cell Apparatus Model EDC-02 is used to measure drug release from pharmaceutical formulations. This apparatus is well-suited for testing topical and transdermal products. With its 2-station design, the EDC-02 is an ideal choice for labs with limited space or for instructional purposes.
Product Overview
This apparatus is designed for simplicity and efficiency. It allows users to program up to 10 different protocols, each with 12 sample intervals. The stirring system uses magnetic coupling, ensuring a stable speed from 30 to 1000 RPM. An external temperature probe is provided to validate the media temperature accurately. The Diffusion Cell Apparatus Model EDC-02 is a reliable tool for basic formulation development studies.
Key Features
- 2-Station Design: Ideal for small-scale studies or educational purposes.
- Flexible Programming: Stores up to 10 protocols with 12 sample intervals.
- Adjustable Stirrer Speed: Speed range from 30 to 1000 RPM.
- Broad Cell Compatibility: Supports vertical diffusion cells of 5, 7.5, 12, 15, and 20 ml volumes.
- Accurate Temperature Control: Includes an external temperature probe for validation.
- Compact Footprint: Ergonomically designed to save benchtop space.
Technical Specifications
| Model | EDC-02 |
| Number of Cells | 2 |
| No. of protocol | 10 Maximum |
| Sample interval | 12 |
| Temperature Range | 30.0⁰C to 40.0⁰C |
| Control accuracy | ± 0.1°C |
| Speed Range | 30-1000 RPM |
| Display | 20 x 4 LCD |
| Power Supply | 230 VAC, 50 Hz OR 110 VAC, 60 Hz |
| Dimensions (L x W x H) | 450mm x 425mm x 365mm |
Applications
- Drug release studies from creams and ointments.
- Testing of transdermal pharmaceutical formulations.
- Use in academic labs for teaching purposes.
- Quality control of topical products.
- Early-stage formulation development.
Pricing
Please contact us for consultation and detailed quotation.
Frequently Asked Questions (FAQ)
1. What is the Diffusion Cell Apparatus Model EDC-02 used for?
This apparatus is used to test the release rate of active ingredients from semi-solid products like creams, gels, and transdermal formulations.
2. How many samples can I test at once?
The EDC-02 model is equipped with 2 stations, allowing for the simultaneous testing of two samples.
3. Is the apparatus programmable?
Yes, you can program and store up to 10 different test protocols on the Diffusion Cell Apparatus Model EDC-02.
4. What is the benefit of the compact design?
The compact design saves valuable benchtop space, making it suitable for smaller laboratories or educational environments.
5. What diffusion cell sizes are compatible with this model?
The apparatus is compatible with vertical diffusion cells of various volumes, including 5, 7.5, 12, 15, and 20 ml.
Conclusion
The Diffusion Cell Apparatus Model EDC-02 is a practical and efficient solution for small-scale diffusion studies. With its programmable features and compact design, it delivers reliable results for R&D and academic labs. Contact us for more information.
