Introduction

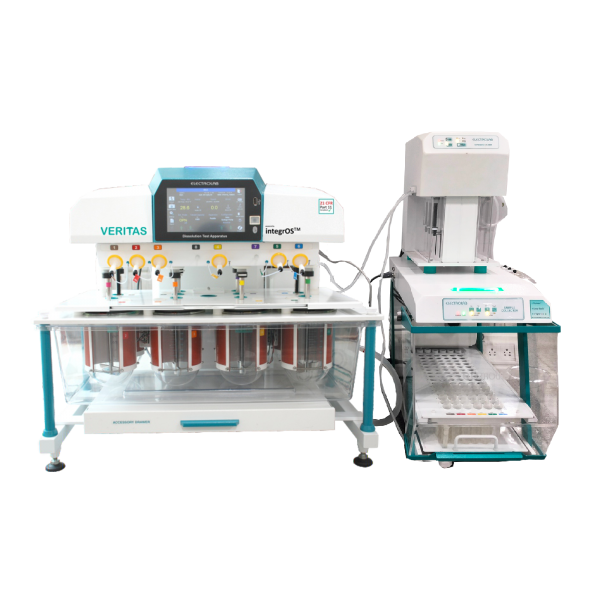

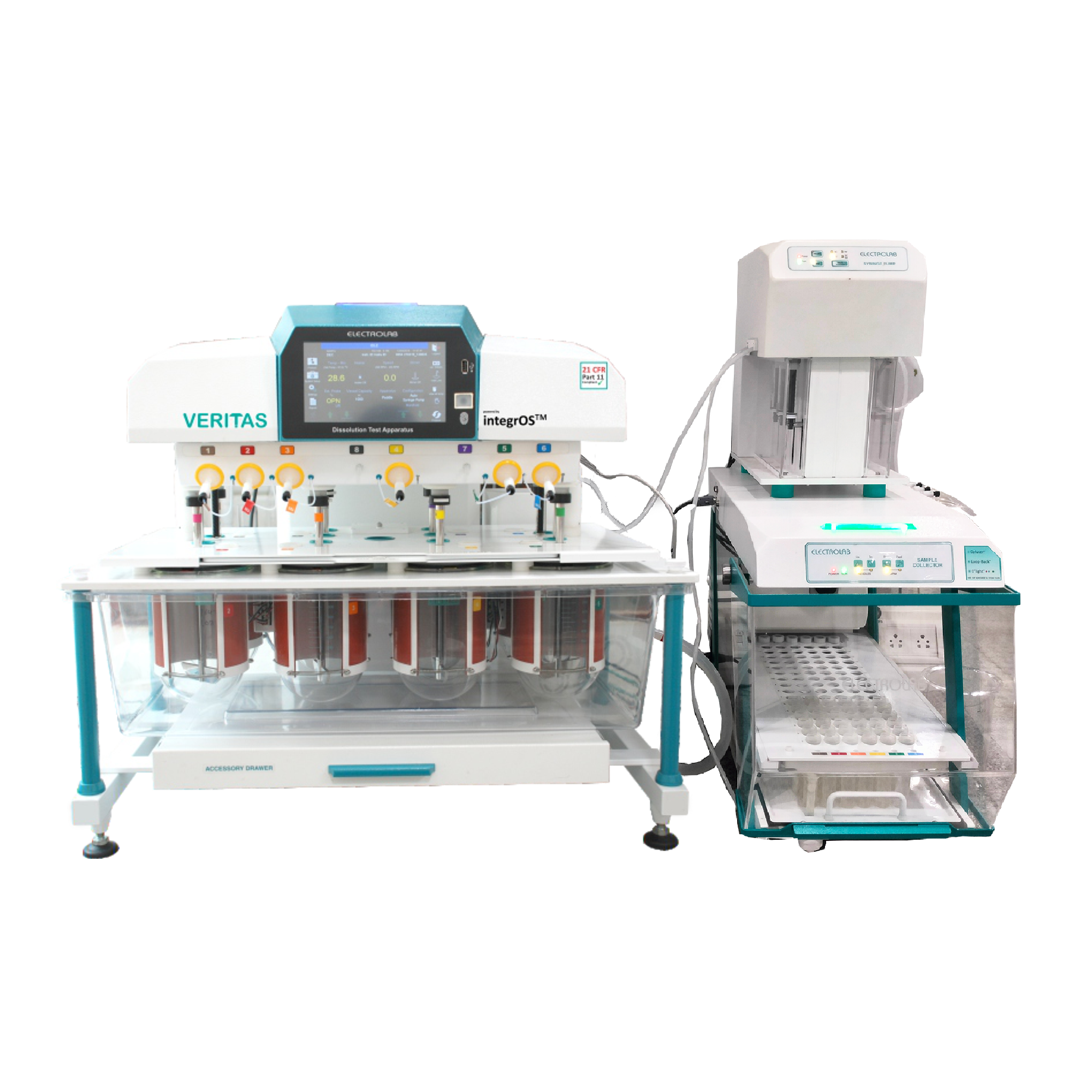

The Veritas-08 with sample collector (DX) is a fully automated 8-station dissolution testing system that uses bathless heating technology. This design eliminates the need for a water bath, which saves water and reduces setup time. The system integrates a sample collector (DX) for precise offline sampling, making it ideal for labs that require efficiency and regulatory compliance.
Product Overview
This system combines the benefits of bathless heating with the convenience of automated sampling. Each vessel is equipped with an individual heater jacket for rapid and uniform heating. The patented V-Stir™ technology allows for continuous wireless temperature monitoring. The Veritas-08 with sample collector (DX) runs on IntegrOS software, providing full 21 CFR Part 11 compliance, including fingerprint login and audit trails, which ensures end-to-end data integrity.
Key Features
- Bathless Heating: Individual heater jackets for each vessel provide rapid heating and eliminate water bath maintenance.
- Automated Sampling: Integrated syringe pump and sample collector (DX) for offline sampling.
- 8-Station Capacity: Allows for simultaneous testing of up to 8 samples.
- V-Stir™ Technology: Continuous wireless temperature monitoring and apparatus type identification.
- 21 CFR Part 11 Compliant: Features IntegrOS software with fingerprint login, audit trails, and e-signatures.
- 7-inch Touch Screen: An intuitive interface for easy programming and monitoring.
Technical Specifications
| Model | Veritas-08 with Sample Collector (Dx) |
| No. of stations | 8 |
| Speed range | 20 RPM to 300 RPM |
| Speed accuracy | ±0.5 RPM |
| Temperature range | 20°C to 40°C |
| Temperature accuracy | ±0.2°C |
| Display | 7″ TFT touch screen display |
| Vessel capacity | 1 L |
| Dimensions (W x L x H) | 541 mm x 1180 mm x 690 mm |
Applications
- Automated quality control testing of tablets and capsules.
- Dissolution profiling of immediate and extended-release drugs.
- Methods requiring USP 1 (Basket), 2 (Paddle), 5 (Paddle over Disk), and 6 (Rotating Cylinder).
- Laboratories seeking to reduce water consumption and automate workflows.
Pricing
Please contact us for consultation and detailed quotation.
Frequently Asked Questions (FAQ)
1. What is the main advantage of the Veritas-08 with sample collector (DX)?
The main advantage is the combination of bathless heating (economical, maintenance-free) and automated sampling, which increases efficiency and reproducibility.
2. How does the automated sampling system work?
A syringe pump withdraws samples at programmed intervals and deposits them into the Dx sample collector, organizing them into tubes or vials for offline analysis.
3. Is the Veritas-08 with sample collector (DX) compliant with 21 CFR Part 11?
Yes, through its integrated IntegrOS software, it offers full 21 CFR Part 11 compliance features, including fingerprint login, audit trails, and e-signatures.
4. How fast is the heating system?
The individual heater jackets can heat the media from 25°C to 37°C in approximately 15 minutes, which is significantly faster than traditional water baths.
5. What is V-Stir™ technology?
V-Stir™ is a patented system that uses a wireless sensor integrated into the stirrer shaft to continuously monitor the media temperature without affecting the hydrodynamics.
Conclusion
The Veritas-08 with sample collector (DX) offers an automated and efficient solution for dissolution testing. Its bathless heating technology and advanced compliance features make it a valuable tool for the modern pharmaceutical laboratory. Contact us for more information.
