Solid Phase Extraction Systems

1. Overview

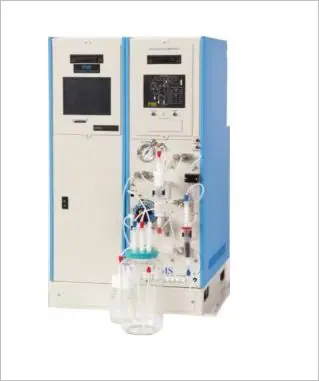

• The fully automated TurboTrace®ABN SPE system is a Multi Cartridge, Multi fractionation system that can run up to 6 samples simultaneously and be used for any SPE method requiring more than one cartridge or fraction.
• The TurboTrace®ABN Parallel SPE system designed to streamline your laboratory’s workflow and increase productivity by automating the manual steps in your sample preparation process.
• The TurboTrace® ABN Parallel SPE system automates existing manual techniques. ABN Methods or EPA Methods 625 and 8270D calls for the extraction for analysis of semivolatile analytes in various matrices. Target analytes mentioned in the method cover a wide range of compound classes resulting in reporting lists that often approach 100 compounds. In aqueous samples, the combination of compound groups such as phenols, anilines, PAHs, phthalates, explosives, pesticides, n-nitrosamines, and others results in a tedious process of multiple LLE (liquid-liquid extractions) with multiple pH adjustments to extract all the analytes. Large elution volumes (>360 mL of methylene chloride) combined with highly volatile analytes, usually result in low recoveries of target compounds and poor analytical precision.
• The TurboTrace® ABN Parallel SPE system is a closed system designed and built to deliver the lowest background delivering reproducible and consistent results. It combines extraction, drying, and concentration into one step – providing a truly automated total sample prep solution for the laboratory.  After loading the sample using Vacuum or Positive Pressure onto the SPE cartridge, the drying step is accomplished using Nitrogen. This drying step replaces manual techniques.
• The analytes of interest are then automatically fractionated into Acid and Base fractions and eluted directly to the SuperVap® Concentrator where the concentration process automatically brings the extract to final volume and places it directly into an autosampler vial, ready for final analysis. Automating these processes into one step ensures the highest quality results in the shortest amount of time and eliminates both human error and the possibility of contamination.

2. Features

• The TurboTrace® ABN SPE system is the only SPE system that combines Dual Cartridge extraction and fractionation, drying, and concentration into one step — providing a truly automated total sample prep solution for the laboratory.

• Simply load samples onto the TurboTrace ABN SPE system to trigger the automated extraction process. After loading the sample onto the SPE cartridge, the drying step is accomplished using Nitrogen. This drying step replaces manual techniques.
• The analytes of interest are then eluted directly to the SuperVap Concentrator where the concentration process automatically brings the extract to final volume and places it directly into an autosampler vial, ready for final analysis. Automating these processes into one step ensures the highest quality results in the shortest amount of time and eliminates both human error and the possibility of contamination. The full process is complete in just over 1 hour versus 16 to 18 hrs and cuts the solvent consumption by 70%.

• The TurboTrace ABN SPE system uses positive pressure pumping for precise and accurate delivery of conditioning, washing, and elution solvents.

• The TurboTrace ABN SPE system is specifically designed to isolate analytes of interest from a wide variety of liquid matrices such as urine, blood, water, milk, beverages. Sample sizes range from 2 mL to 8 L and use the same bottle the sample was collected in.
• Sample loading rates are programmable. A vacuum or positive pressure pump is used to load samples onto the SPE cartridges and columns at unprecedented speeds and it easily handles both clean and tough sample matrices. The TurboTrace ABN SPE system concentrates samples up to 250 mL directly to a GC vial. The Sample
• Processing Module is designed to use all standard formats of SPE cartridges and columns on the market today. For guaranteed results, especially when dealing with low limits of detection, we recommend FMS prepacked columns and cartridges.
• Sample Processing Modules can be easily swapped out to perform cleanup column chemistries allowing the lab to multipurpose the TurboTrace ABN SPE system to automate other sample prep processes.
• The TurboTrace ABN SPE system is a Multi Cartridge, Multi fractionation system that can be used for any SPE method requiring more than one cartridge or fraction.

• Reduces Errors

• One-step automated SPE and concentration eliminates human error, saves labor costs and reduces solvent usage while increasing your sample throughput

• Fully Automated

• Hyphenates the entire sample prep process–extraction, drying, and concentration steps–into a one-step program.
• Runs up to 8 samples, simultaneously
• Sample Liquid Level Sensor to detect when the Sample has finished loading Automatic Sample bottle rinse
• Concentrates samples up to 250 mL directly to a GC vial
• Waste liquid level sensor to prevent waste overflow
• Dual Cartridge extraction and fractionation of Acid/Base/Neutral

• High Speed

• The fastest automated sample processing available for ABN methods using SPE cartridges and columns ready for analysis in hours versus days
• Run up to eight samples simultaneously
• Vacuum for fast loading of large-volume samples

• Versatile

• Handles a wide range of sample sizes and all matrix types
• Dual Cartridge allows for many other types of multi-cartridge applications
• Up to 3 fractions per run
• Sample Sizes 2 mL to many liters
• Sample Liquid Level Sensor to detect when the Sample has finished loading
• Expandable from 1 to 8 modules

• Efficient

• Uses all SPE cartridge and column sizes
• Positive pressure pumping for loading small volume samples
• Nitrogen drying

• Compliant

• Complies with existing methods that require vacuum, positive pressure pumping for the precise delivery of sample and solvents
• Dispenses up to six solvents using an HPLC pump to deliver precise volumes and flow rates for conditioning and elution

• Easy Documentation

• Programs and stores an unlimited number of methods and runs on an SD Card Easy method transfer
• Easy-to-use software.

3. Technical Details

• Dimensions: 15”W x 18”D x 35”H
• Weight: 65lbs
• Gas Requirements: Nitrogen – 20PSI minimum
• Vacuum Requirements: 25” Hg minimum
• Pump: Piston Displacement
• Flow rate: 0.2 to 15ml/minute
• Electrical Input: 110/220 Volts, 50/60HZ
• Controller: Integrated Touch Screen Control
